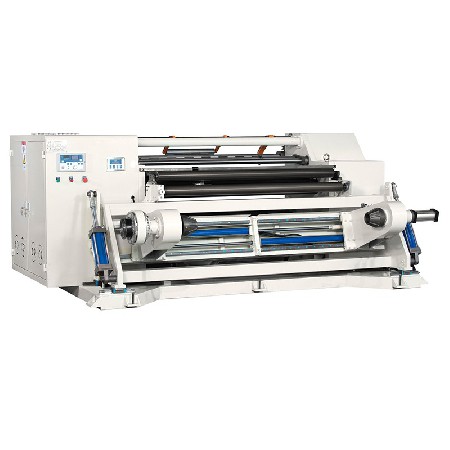

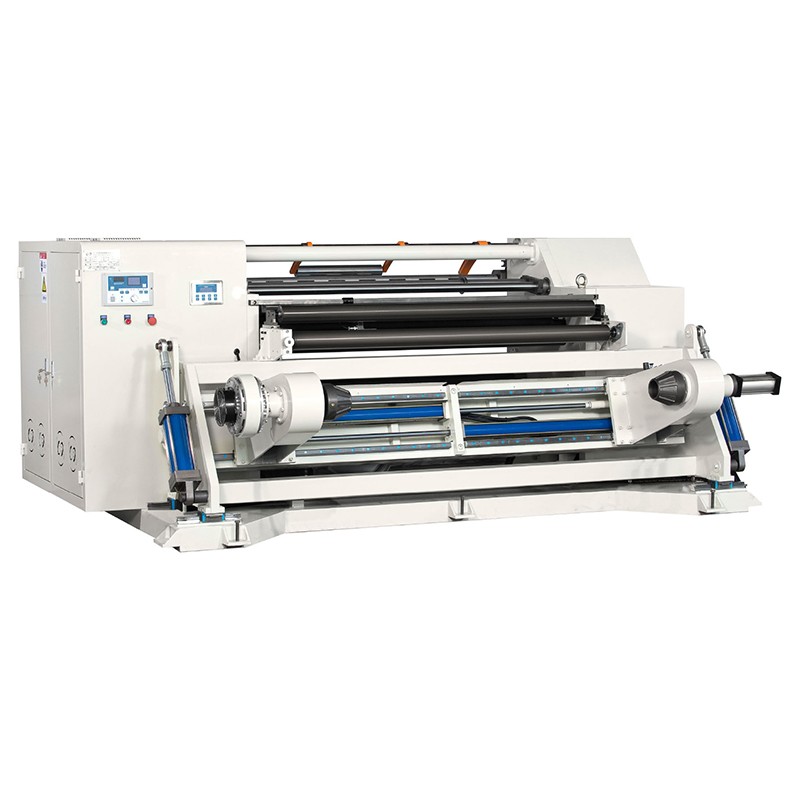

SLA-FADouble shaft center winding and slitting machine
2019-03-27 1877
SLA-FA
Double shaft center winding and slitting machine
Biaxial Center Winging Machine
Applicable material
Flexible package for composite film
TECHNICAL SPE CIFICATION
·Max unwind width1100~2400mm
·Without shaft core type volume 1400mm
·Wax Unwind Diameter 600mm
· ·Blade and Blade Groove of shaft cutting
·Max machine speed 350mmpm
·Auto Tension Control System
·Upper and lower shafr, double work
center book take
-
03-27
What is the reason why the tension of the film winder is too small?
There is sometimes no tension in the magnetic powder clutch.For this reason, there is a short circuit or poor contact. Check if the input wire is exposed and touch the mechanical body. Check for loose wire connections. Another reason is that the internal magnetic powder has now lost a part of the magnetic properties, and sometimes there is no phenomenon when tension occurs during the application process. In this case, it is considered to replace the new magnetic powder. 3. The magnetic po
-
03-27
Four operating requirements of the slitting machine
The most important performance indicators for fixed length slitting are the cutting accuracy and the consistency of the finished product length. The slitting length can be set continuously. If there is an error in the actual slitting length, it is easy to calibrate by setting parameters. Article from Jiangmen Nantian Machinery Manufacturing Co., Ltd.
